CNC Vertical Turret Lathe
Compact | Cost Effective

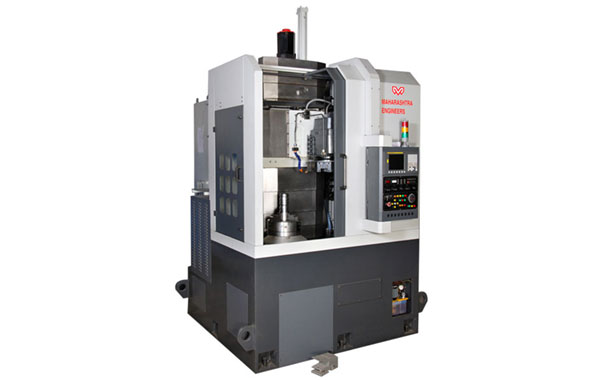

CNC Vertical Turret Lathe - VTL-500

VTL-500 CNC Vertical Turret Lathe is designed to cater to the needs of small components like valves, pumps and auto components. This machine is very compact and cost effective.

This Vertical Turret Lathe is designed with the high output user in mind. It features high torque drives for your toughest cuts and provides a greater level of support to enhance accuracy and finish.

Massive castings and extra-wide way systems assure accurate and stable machining on our CNC Vertical Turret Lathe. Heavy duty transmissions allow stock removal at high spindle speeds.

  • Automatic Pouring Machine

    • VTL-500 VERTICAL TURRET LATHE SPECIFICATIONS

    Item Description
    Capacity Max.Machining Diameter ᶲ 500 mm
    Max. Longitudinal Travel ( Z-Axis) 530 mm
    Max. TranserveTravel ( X-Axis) 275 mm
    Spindle Spindle Type Cartridge
    Spindle Nose A2-8
    Bore Through Spindle ᶲ47 mm
    Front Bearing Bore ᶲ120mm
    Max. Spindle Speed 50-2500 RPM
    Spindle Motor Fanuc-Alpha iP Series RPM 6000. 18.5Nm /22 KW
    Chuck Size ᶲ315 /ᶲ400 GMT Make
    Tooling Standard Cutting Tools 32 X 32 mm
    Maximum Boring Bar Size ᶲ 50 mm
    Turret Model BTP-125 Pragati Make
    No.of Stations 8
    Axes Ball Screw Diameter X-Axis ᶲ 32 X 10 Pitch
    Ball Screw Diameter Y-Axis ᶲ 40 X 10 Pitch
    X-Axis Servo Motor Fanuc AC 22Nm
    Z-Axis Servo Motor Fanuc AC 22Nm
    Rapid Rate X-Axis 20m/min
    Rapid Rate Z-Axis 20m/min
    Approx. Weight Approx. Weight 6000 Kg
