For foundries, the process of pouring is a key process in the holistic process of casting. It should be done in a certain manner to ensure minimal energy consumption along with efficiency and convenience.

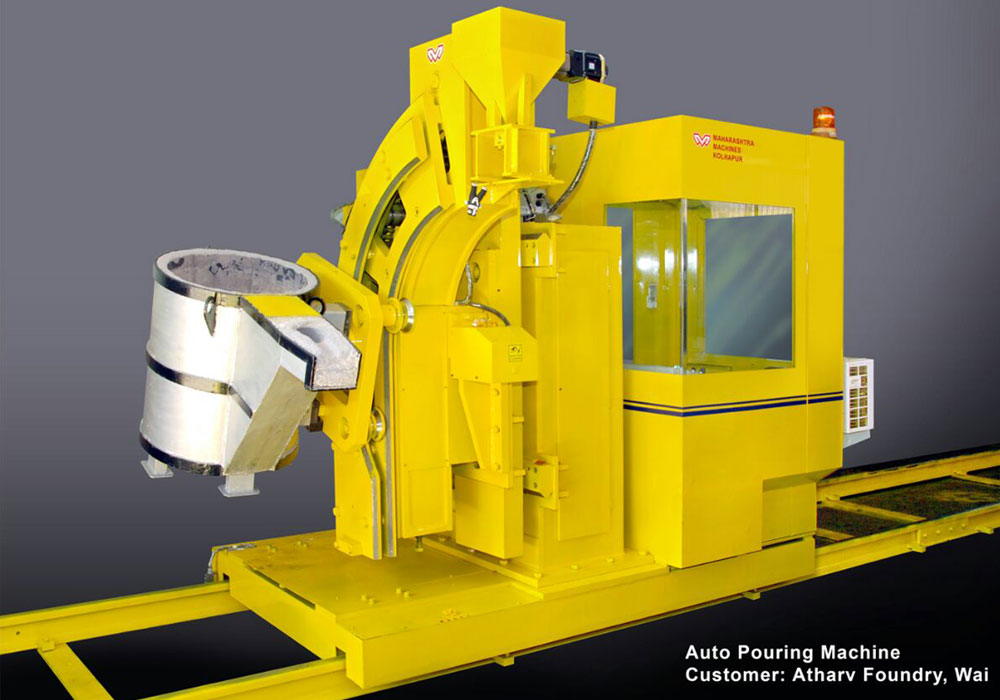

Our Automatic Pouring Machines are designed to increase productivity and also to provide the highest level of pouring accuracy. Pouring by skilled operators is directly automated to reduce defects and eliminate the necessity of working in a hot place. These Automated Pouring Systems also eliminate metal wasting over pours.
Automatic Pouring Machines are usually produced with ladles ranging from 150 to 1000 kg.
Customized Automatic Pouring Machines can be made as per your requirements
Automatic Pouring Machine comes with four axis control to change pouring point position.
X axis - movement along the rails
Y axis – left/right movement of the ladle
Z axis – up/down movement of the ladle
W axis – ladle rotation
The inoculation of the material starts and stops automatically while the machine is pouring.
To pour right quantity of molten metal, machine is equipped with Weight cells (Load Cells). As per mold bunch weight program can be changed.
The Fabricated ladle has rigid plates, supporting ribs, handle and it is equipped with lifting structure, gear box and forma for lining. Ladle is designed to achieve easy loading and unloading.
The operator cabin is fully enclosed. Operator can control every part of the pouring system. The controls are easy to operate and ergonomic.
Automatic Pouring Machine is equipped with PLC based Electrical control Panel. Touch screen HMI and joysticks are used in operating panel which leads to easy operating. Provision of storing data about real time item poured no. of boxes and Automatic temeprature reading & recording is done for further analysis.
